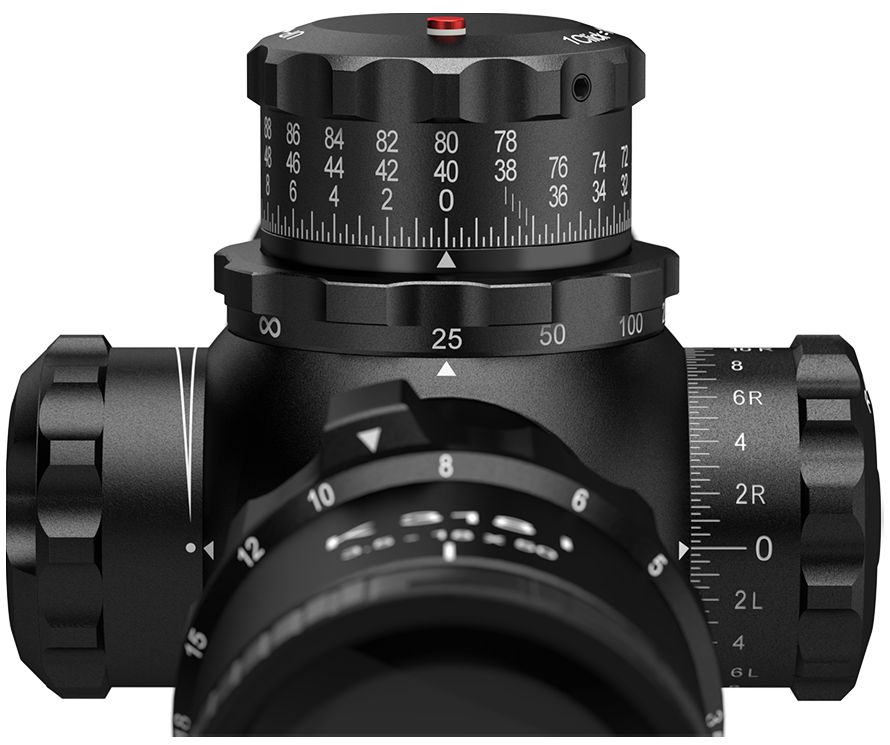

The Kahles K318i 3-18x50i CCW (RSW) MOAK 10658 means optical and mechanical perfection packed into an ultrashort design. With precise illuminated reticles in 1 st focal plane, sharply defined throughout the entire magnification range and the unique TWIST GUARD windage.
NOTE
LSW (Left Side Windage) is ideal for right handed shooters
RSW (Right Side Windage) is ideal for left handed shooters
CW - Elevation and windage are working clockwise (=сw)
CCW - Elevation and windage are working counter-clockwise (= ccw)
FEATURES:
- Ultrashort and lightweight riflescope for demanding shooters
- Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
- Wide field of view and exceptional high contrast image
- Innovative TWIST GUARD windage (patented)
- Parallax wheel integrated into the elevation turret (patented) (25 m to ∞)
- Precise illuminated reticles in 1st focal plane
SPECIFICATIONS:
Magnification: 3.5 - 18
Eye relief: 3.62 in
Field of view: 27.8 - 5.5 ft/100 yds
Diopter compensation: +2.5 / -3.5 dpt
Twilight factor (DIN 58388): 13.2 - 30.0
Impact correction per click: ¼ MOA
Adjustment range (E/W): 106.0 / 72.0 in/100 yds | 30.0 / 20.0 MILS | 102.0 / 69.0 MOA
Parallax adjustment: 25 m till ∞
Tube diameter: 34 mm / 1.34 in
Length: 12.3 in
Weight: 33.2 oz
Focal plane: 1
Illuminated: Yes
Warranty: 10 years
MPN: 10658
